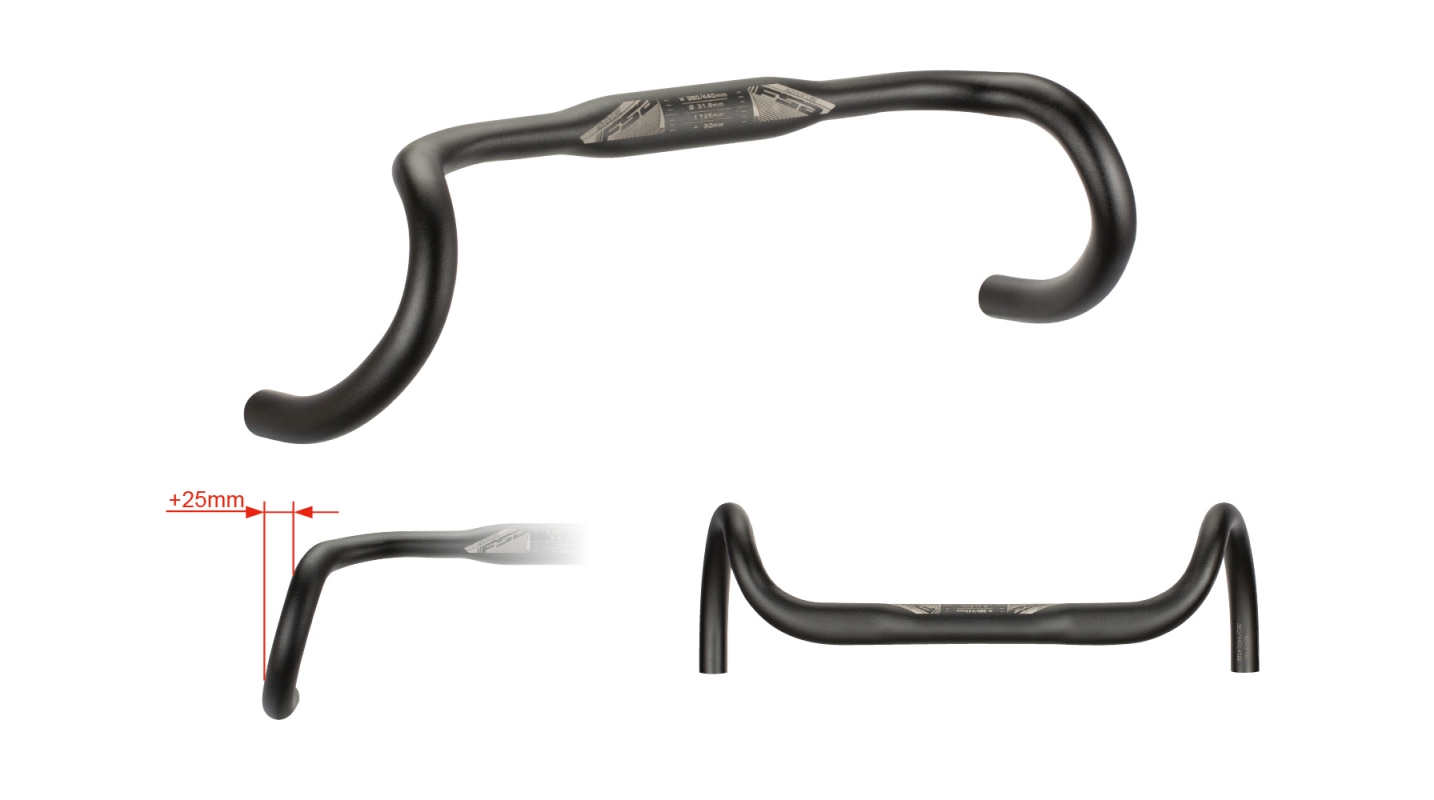

ADVENTURE COMPACT AGX HANDLEBAR

• Double butted, tapered and shot-peened AL6061

SIZES

• Ø31.8mm bar clamp diameter with 34×21 oval section
• W380, 400, 420, 440,460mm
• 125mm drop, 78mm reach
• 12° side flare

FINISH

• Bead blasted anodized black
• Laser graphics

WEIGHT

• 320 grams (420mm)

CODE	WIDTH	DROP	REACH	OUT-BEND	FLARE	RISE	STEM
185-0011092052	380 mm	125 mm	78 mm	4°	25 mm	0 mm	31.8 mm
185-0011012050	400 mm	125 mm	78 mm	4°	25 mm	0 mm	31.8 mm
185-0011013050	420 mm	125 mm	78 mm	4°	25 mm	0 mm	31.8 mm
185-0011014050	440 mm	125 mm	78 mm	4°	25 mm	0 mm	31.8 mm
185-0011046050	460 mm	125 mm	78 mm	4°	25 mm	0 mm	31.8 mm
