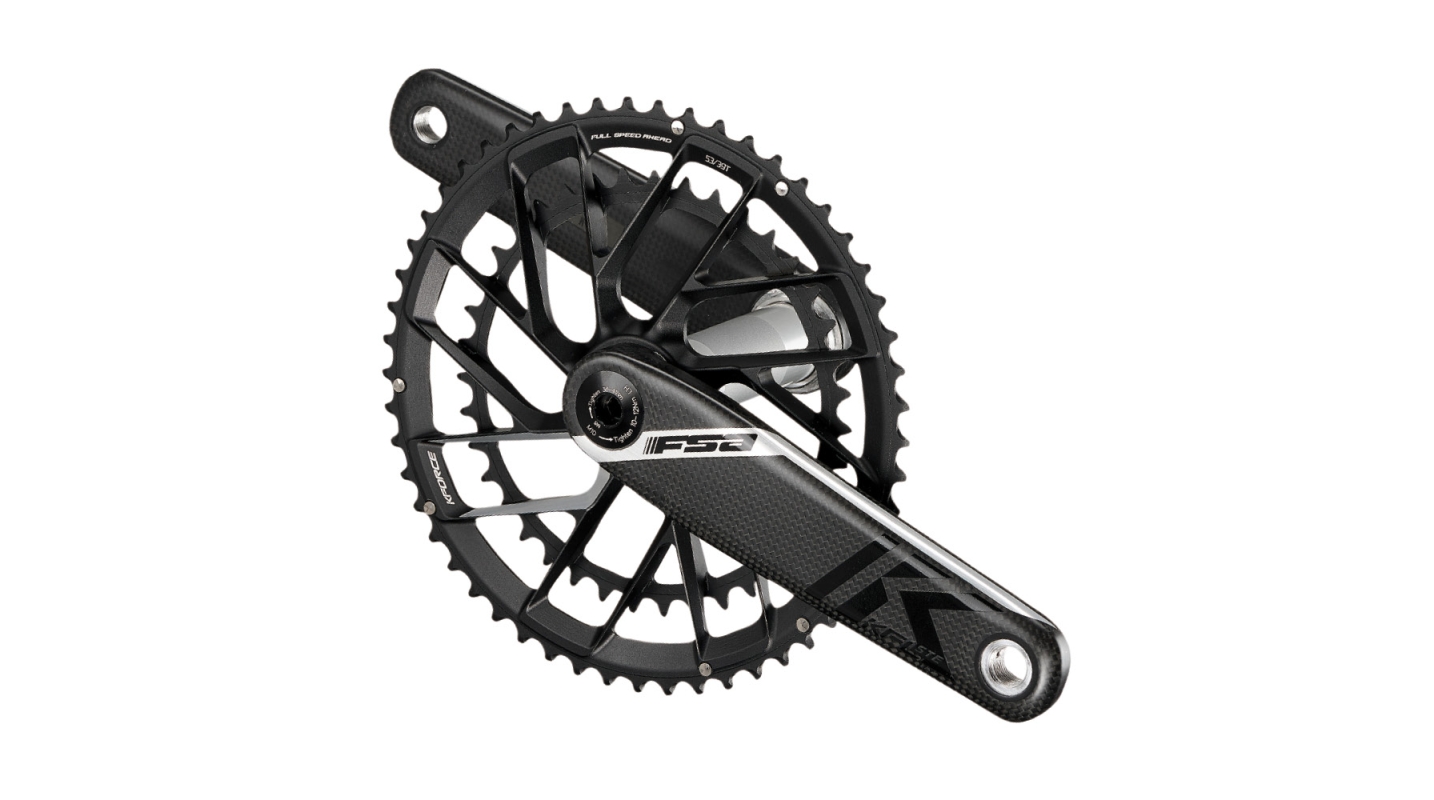

K-FORCE WE TEAM EDITION BB386EVO CRANKSET

• Hollow 3K carbon fiber arms
• Carbon composite arms
• AL7075 100% CNC chainrings
• 30mm CNC machined AL7050 BB386EVO spindle
• BCD – Direct Mount

SIZES

• Length – 165, 167.5, 170, 172.5, 175mm
• SMN and SRAM 10-11S – 53/39T, 52/36T, 50/34T, 48/32T, 46/30T

Chainrings –
53/39T, 52/36T, 50/34T, 48/32T, 46/30T (11S)
53/40, 52/39T, 50/37T, 48/35T, 46/33T (12S SRAM)
54/40T, 50/34T, 46/30T (12S Shimano/ FSA)

• QF / C.L. – 145mm / 45mm

FINISH

• 3K finish
• Bead blasted anodized black
• Color graphics

WEIGHT

• 544 grams (53/39T)

CRANKSETS

CODE	TEETH	LENGHT	CHAINLINE	SPINDLE	DRIVETRAIN
336-0409BJ3030	46×30 T	170 mm	45 mm	30 mm (BB386EVO)	SHIMANO/FSA 12S
336-0409BJ4030	46×30 T	172.5 mm	45 mm	30 mm (BB386EVO)	SHIMANO/FSA 12S
336-0409BJ5030	46×30 T	175 mm	45 mm	30 mm (BB386EVO)	SHIMANO/FSA 12S
336-0409553030	50×34 T	170 mm	45 mm	30 mm (BB386EVO)	SHIMANO/FSA 12S
336-0409554030	50×34 T	172.5 mm	45 mm	30 mm (BB386EVO)	SHIMANO/FSA 12S
336-0409555030	50×34 T	175 mm	45 mm	30 mm (BB386EVO)	SHIMANO/FSA 12S
336-0409BV3030	54×40 T	170 mm	45 mm	30 mm (BB386EVO)	SHIMANO/FSA 12S
336-0409BV4030	54×40 T	172.5 mm	45 mm	30 mm (BB386EVO)	SHIMANO/FSA 12S
336-0409BV5030	54×40 T	175 mm	45 mm	30 mm (BB386EVO)	SHIMANO/FSA 12S

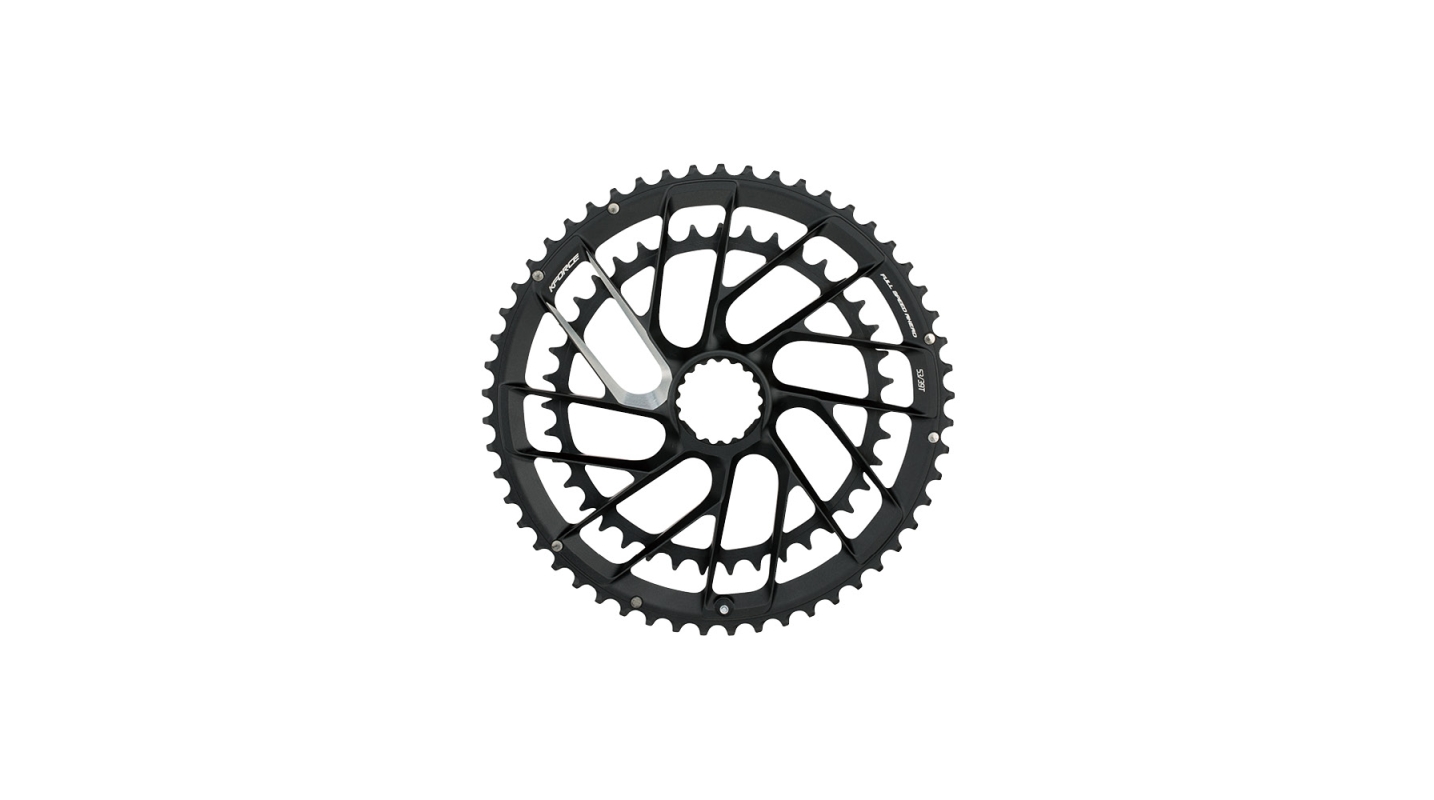

CHAINRINGS

CODE	TEETH	BCD	DRIVETRAIN	金額
370-0204046050	46×30 T	DM	SHIMANO/FSA 12S	70,070円（税込）
370-0205022050	50×34 T	DM	SHIMANO/FSA 12S	70,070円（税込）
370-0203063050	54×40 T	DM	SHIMANO/FSA 12S	70,070円（税込）

390-0119000010	CKSP K-FORCE T.Edit Left crank bolt ML679	2,200円（税込）
390-0120000010	CKSP K-FORCE T.Edit Right Self Extr bolt ML683+659	2,310円（税込）
