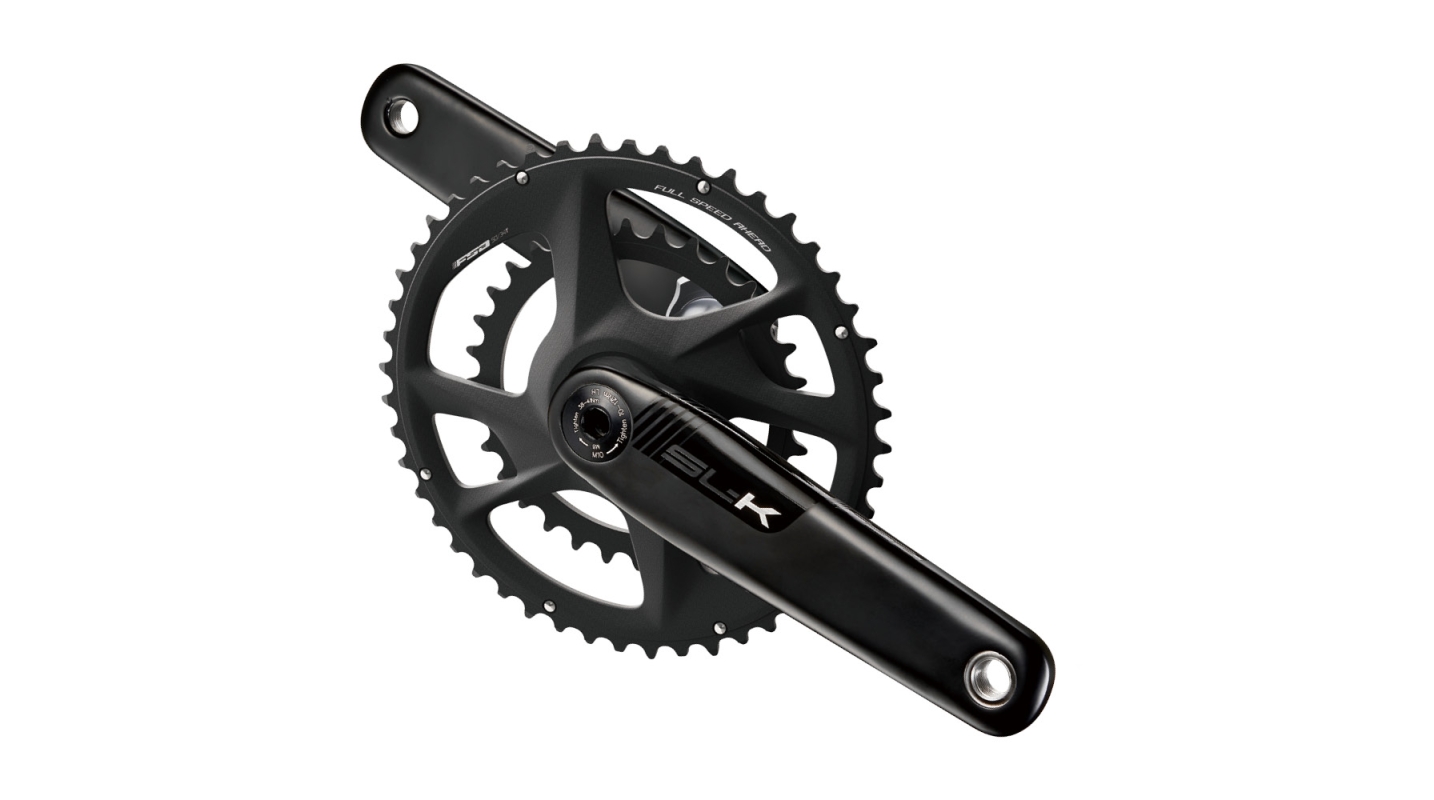

SL-K LIGHT DIRECT MOUNT BB386EVO CRANKSET

• Hollow carbon arms with UD carbon finish
• Carbon composite arms
• Cold forged AL7075 CNC chainrings
• 30mm forged AL7050 BB386EVO spindle
• BCD – Direct Mount

SIZES

• Length – 165, 170, 172.5, 175mm
• Chainrings 48/35T (12S SRAM)、54/40T, 53/39T, 52/36T, 50/34T (12S Shimano/ FSA)
• QF / C.L. – 147mm / 44mm

FINISH

• UD carbon finish
• CNC detailed, bead blasted anodized black DM chainring

WEIGHT

• 507 grams (46/30T)

CRANKSETS

CODE	TEETH	LENGHT	CHAINLINE	SPINDLE	DRIVETRAIN
336-0415553030	50x34T	170 mm	45 mm	30 mm (BB386EVO)	SHIMANO/FSA 12S
336-0415554030	50x34T	172.5 mm	45 mm	30 mm (BB386EVO)	SHIMANO/FSA 12S
336-0415555030	50x34T	175 mm	45 mm	30 mm (BB386EVO)	SHIMANO/FSA 12S
336-0415743030	52x36T	170 mm	45 mm	30 mm (BB386EVO)	SHIMANO/FSA 12S
336-0415744030	52x36T	172.5 mm	45 mm	30 mm (BB386EVO)	SHIMANO/FSA 12S
336-0415745030	52x36T	175 mm	45 mm	30 mm (BB386EVO)	SHIMANO/FSA 12S
336-0415293030	53x39T	170 mm	45 mm	30 mm (BB386EVO)	SHIMANO/FSA 12S
336-0415294030	53x39T	172.5 mm	45 mm	30 mm (BB386EVO)	SHIMANO/FSA 12S
336-0415295030	53x39T	175 mm	45 mm	30 mm (BB386EVO)	SHIMANO/FSA 12S
336-0415BV3030	54x40T	170 mm	45 mm	30 mm (BB386EVO)	SHIMANO/FSA 12S
336-0415BV4030	54x40T	172.5 mm	45 mm	30 mm (BB386EVO)	SHIMANO/FSA 12S
336-0415BV5030	54x40T	175 mm	45 mm	30 mm (BB386EVO)	SHIMANO/FSA 12S

CHAINRINGS

CODE	TEETH	BCD	DRIVETRAIN
370-0223011050	54 T (40 T)	DM	SHIMANO/FSA 12S
370-0200006050	40 T (54 T)	90 mm	SHIMANO/FSA 12S
370-0224007050	53 T (39 T)	DM	SHIMANO/FSA 12S
370-0096005050	39 T (53 T)	90 mm	SHIMANO/FSA 12S
