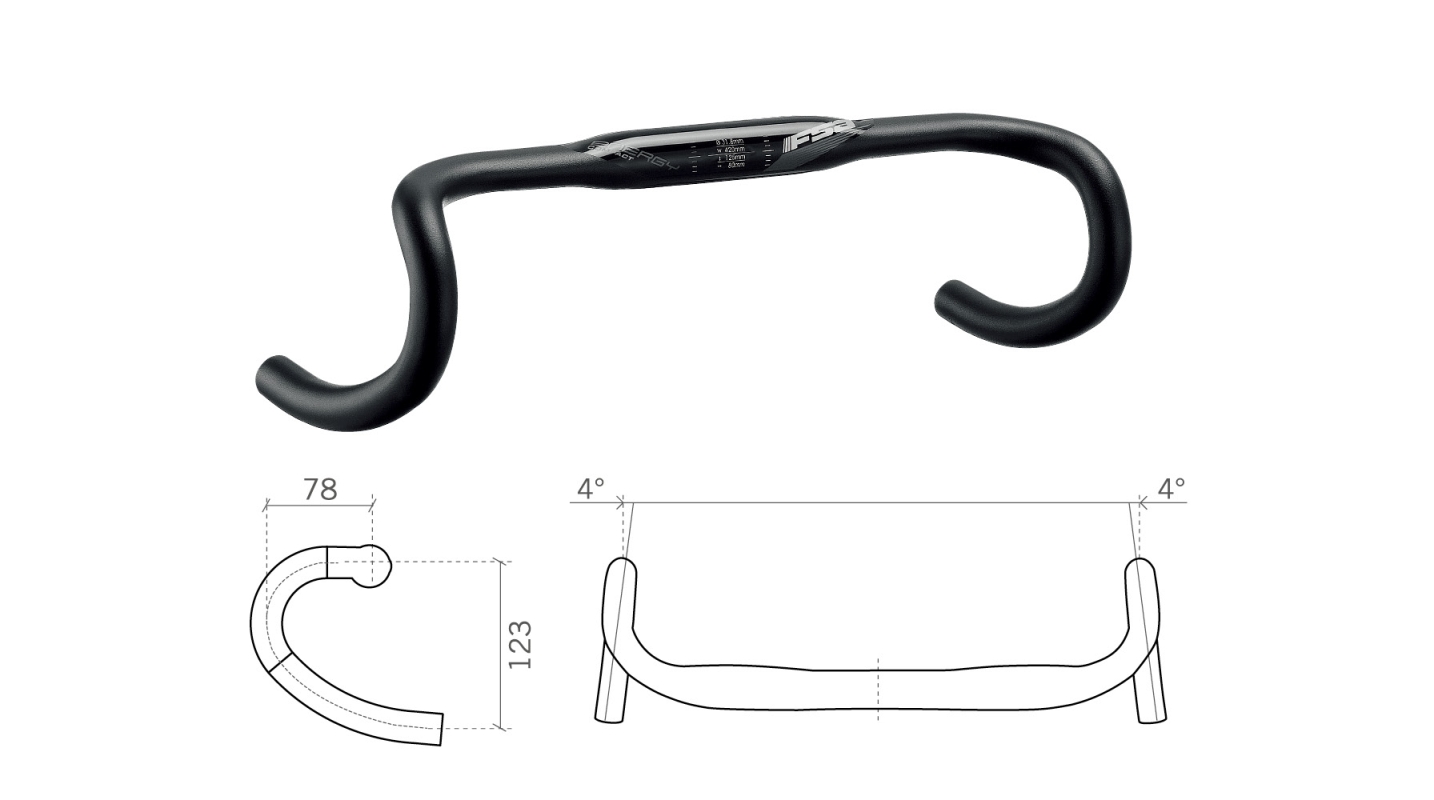

ENERGY COMPACT ACR HANDLEBAR

• Aerodynamic integrated Cable Routing (ACR)
• Semi integrated cable routing (SCR)
• Double butted and tapered AL7050
• 34mm ergonomic flat top
• 110mm wide round center section

SIZES

• Ø31.8mm x W380, 400, 420, 440mm (c-c)
• 123mm drop, 78mm reach
• 4° outward bend

FINISH

• Bead blasted black with polished anodized black
• Color graphics – gray

WEIGHT

• 295 grams (420mm)

CODE	WIDTH	DROP	REACH	OUT-BEND	FLARE	RISE	STEM
185-0018035090	380 mm	123 mm	78 mm	4°	0 mm	0 mm	31.8 mm
185-0018012090	400 mm	123 mm	78 mm	4°	0 mm	0 mm	31.8 mm
185-0018013090	420 mm	123 mm	78 mm	4°	0 mm	0 mm	31.8 mm
185-0018014090	440 mm	123 mm	78 mm	4°	0 mm	0 mm	31.8 mm
